Company Profile

Digital Waveform Systems, Inc. ("Digital Waveform" or "The Company") specializes in the research, design, and development of advanced, state-of-the-art, 5G-based next-generation digital communications, radar, and networking systems. The Company refers to this system concept as the Multiple-Input, Multiple-Output Intermodulation Spread Spectrum (MIMO-ISS) System.

The MIMO-ISS System is envisioned as a future-generation digital communications product portfolio. The product portfolio is composed of advanced and integrated cellular waveforms, radar, and networking systems. As illustrated in Figure 1, the MIMO-ISS System aims to target 5G “Next-Generation” Global Cellular Markets.

Details of the MIMO-ISS System Product Portfolio are presented in the sections below.

Strategic Objective

Digital Waveform’s strategic objective is to establish itself as the pre-eminent technology leader of advanced computational concepts, techniques, and algorithms for digital communication devices, software, and systems based on the theory and concepts of Intermodulation Spread Spectrum (ISS) Modulation.

To accomplish this objective, Digital Waveform proposes to establish strategic “alliances” and/or “partnerships” with major corporations and organizations. The purpose of the alliances will be to comprehensively realize and market the MIMO-ISS System as an advancement of 5G concepts.

Product Portfolio

MIMO-ISS is a proprietary, patent pending, integrated product portfolio composed of three core technology systems. These core technology systems are the following:

  • MIMO-ISS Waveform System:
    		•  Intermodulation Spread Spectrum (ISS) Digital Waveform System
  • MIMO-DPR Radar System:
    		•  Multiple-Input Multiple-Output Digital Plenoptic Radar (DPR) System
  • MIMO-CRN Networking System:
    		•  Multiple-Input Multiple-Output Cellular Radar Networking (CRN) System

As a 5G product portfolio concept, the MIMO-ISS System Product Portfolio Concept is illustrated in Figure 2 below. The MIMO-ISS System targets applications including: 5G services, internet-of-things applications, agile and robust networking, and “smart city” networks.



MIMO-ISS System Product Portfolio Concept



MIMO-ISS Waveform System

(5G “Non-linear” Digital Communications)

MIMO-DPR Radar System

(5G “Non-linear” Digital Radar)

MIMO-CRN Networking System

(5G “Non-linear” Digital Cellular)

















Figure 2: MIMO-ISS supports Cellular 5G, Internet-of-Things, Agile & Adaptive Networking, and Smart City Applications

5G Architecture System

The MIMO-ISS System is a 5G Architecture System. 5G Architecture System means that the MIMO-ISS System is compliant with the 5G Technical Standards published by the 3GPP Organization. Specifically, the MIMO-ISS System is compliant with the 3GPP specifications developed by the Technical Specification Group (TSG).

Figure 3 below shows the MIMO-ISS System Comparative Performance Characteristics with respect to 4G and 5G systems. The MIM0-ISS (5G+) System expects to outperform 5G (IMT-2020) in a number categories. As presented in the table, in some categories, the MIM0-ISS (5G+) System expects to outperform 5G (IMT-2020) by a factor of 10x.



MIMO-ISS System Comparative Performance Characteristics



MIMO-ISS Waveform System

(5G “Non-linear” Digital Communications)

MIMO-DPR Radar System

(5G “Non-linear” Digital Radar)

MIMO-CRN Networking System

(5G “Non-linear” Digital Cellular)





Figure 3: MIMO-ISS aims to outperform 4G and 5G Cellular Networks

MIMO-ISS Waveform System

MIMO-ISS Waveform System is a “non-linear” digital communications, modulator-demodulator (i.e. modem) waveform system. Mathematically, the modem system operates based on the concepts and principles of “non-linear”, digital modulation theory.

The MIMO-ISS Waveform System introduces two “innovative” non-linear modulation concepts. These non-linear modulation concepts are:

Intermodulation Spread Spectrum (ISS) is a state-of-the-art, non-linear, angle-modulated spread spectrum digital modulation technique. Additionally, the ISS waveform is a constant-envelope and multi-dimensional wideband digital spread spectrum waveform system. ISS enables advanced digital communications systems that offer high immunity to interception, detection, and jamming. And lastly, ISS enables next-generation digital communications systems that offer high power efficiency, high spectrum efficiency, and high system capacity.

The target application areas for the MIMO-ISS Waveform System are next-generation (1) cellular radar and (2) cellular networking markets.

MIMO-DPR Radar System

MIMO-DPR Radar System is a “non-linear” digital radar system. The key architectural component of the MIMO-DPR System is a concept called “active” plenoptics. “Active” plenoptics is the integration of code division multiple access (i.e. CDMA) techniques with the discrete geometry algorithms into a new concept of radar systems.

Plenoptics is a concept adapted from computational photography. The word plenoptic is derived from Latin. Plenoptic means "full image" or "full vision". As such, the concept of digital plenoptic radar translates as follows:

As an integrated component of the MIMO-ISS System, MIMO-DPR operates using the Intermodulation Spread Spectrum (i.e. ISS) modem waveform system. In combination with the ISS waveform, these concepts enable advanced geometric digital radar systems that operate with high immunity to interception, detection, and jamming. Operationally, the MIMO-DPR Radar System enables improved detection, ranging, and parametric operations of the radar system.

The target application area for the MIMO-DPR Radar System is next-generation automotive radar markets.

MIMO-CRN Networking System

MIMO-CRN is a “non-linear” digital cellular networking system. The MIMO-CRN System is a distributed cellular “and” radar networking system. MIMO-CRN offers significant advancements in the system’s time and spatial synchronization architectures, waveforms, protocols, and algorithms. The MIMO-CRN System architecture is based on the cellular single-frequency networking (SFN) concepts. Cellular SFN technology represents the most state-of-the-art networking paradigms and concepts to enable distributed cellular “and” radar networking applications.

The MIMO-CRN System is composed of four major network architectural components. These network architectural components are:

Figure 4 below illustrates the proposed the MIMO-CRN protocol hierarchy for the Delay Tolerant Network (DTN). MIMO-CRN proposes to integrate these networking protocols into a seamless, novel, and coherent 5G cellular network architecture.

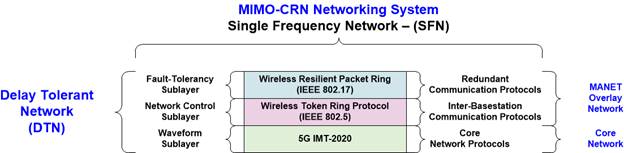

MIMO-CRN Protocol Hierarchy Diagram





Figure 4: MIMO-CRN provides, supports, and enables Cellular Delay Tolerant Network (DTN) Protocols and Applications

MIMO-CRN aims to realize a highly robust, bidirectional, and disruption-tolerant cellular communications network for “smart city” type applications. The MIMO-CRN Networking System enables “smart cities” that offer and/or provide robust, resilient, adaptive, self-forming, self-healing, and self-organizing mobile ad-hoc network (MANET) capability and connectivity.

Figure 5 below provides a graphic illustration of the concept of Resilient and Adaptive 5G Connectivity.

MIMO-ISS System

Resilient and Adaptive 5G Connectivity





Figure 5: MIMO-CRN provides, supports, and enables Integrated Resilient and Adaptive 5G Cellular Connectivity

MIMO-CRN enables cooperative, synergistic, and ad-hoc and dynamic networking for next-generation communications, radar, and cellular networking operations. The MIMO-CRN system supports integrated mobility, as well as, serves as a building block for future urban societies, where autonomous vehicles, smart homes and infrastructure synergistically cooperate to create “smart” cities. In support of high-density networking (i.e. densification), MIMO-CRN provides synergistic operations, radar detection, and communications within (intra-system) and between (inter-system) systems of smart nodes. In support of these types of applications, the MIMO-CR system integrates real-time time synchronization with spatial localization. This cellular synchronization architecture enables full networking situational and infrastructure intelligence.

The target application area for the MIMO-CRN Networking System is next-generation cellular high-densification, high-performance cellular and radar networks, and high data rate (i.e. 100’s of gigabits per second) wireless digital communications markets. MIMO-CRN Networking System enables new markets for resilient, adaptive, and self-healing autonomous vehicle networks and cellular networking systems.

Computational Design System

Underlying the system architecture concepts, first and foremost, the MIMO-ISS System is an advanced computational design system. This computational design system is a comprehensive and integrated technology portfolio composed of state-of-the-art computational, algorithmic, and mathematical formula techniques, methods, and principles for digital communications applications.

Computational design means the "design" of mathematical formulations and algorithmic techniques.

There are three major computational design areas. These design areas are:

For these computational design areas, the key computational design concepts are briefly outlined in the sections below.

I. MIMO-ISS Waveform System Design:

The MIMO-ISS Waveform System is the “core-technology” of the MIMO-ISS System. This waveform system enables the advancement of 5G-based next-generation digital communications, radar, and networking systems.

There are number of key computational and algorithm design areas. Three of these areas are:

II. MIMO-DPR Vector-Based Radar:

MIMO-DPR is a vector-based, computational geometry, convex optimization, coherent spread-spectrum MIMO Digital Radar System. The MIMO-DPR System is formulated as a discrete geometry system.

The Digital MIMO Radar System is composed of three major digital and discrete computational systems. These systems are:

Mathematically, the MIMO-DPR System represents a new, novel, and advanced computational class of radar system referred to as the MIMO-Discrete Geometry Radar (i.e. MIMO-DGR) System. Figure 6 below emphasizes the idea that the MIMO-ISS Computational System is a system of mathematical formulations, techniques, and advancements.

MIMO-ISS Computational System

(System of “Mathematical Formulations” and Algorithmic Techniques)





Figure 6: MIMO-ISS is a Technology Portfolio composed of Computational, Algorithmic, and Mathematical Advancements

III. Computational System-of-Vectors:

The MIMO-DPR System is a computational system-of-vectors. This computational system-of-vectors provide the design basis for the radar system parameters. As a computation geometry system, the DPR Radar System defines a system composed of three set of discrete abstract radar objects: transmitters, receivers, and targets.

For these discrete abstract radar objects, the specific vectors of the radar system parameters are the following:

Proprietary

The MIMO-ISS System is proprietary and confidential to Digital Waveform Systems, Incorporated. Detailed information and description of the concepts, algorithms, mathematical formulations, architectural diagrams, signal-flow diagrams, and technologies, of the MIMO-ISS System, can be provided and disclosed subject to mutual non-disclosure agreements.

If you are interested in learning more about the details, specifications, and capabilities of the MIMO-ISS System you can contact us at Digital Waveform Systems, Incorporated.
